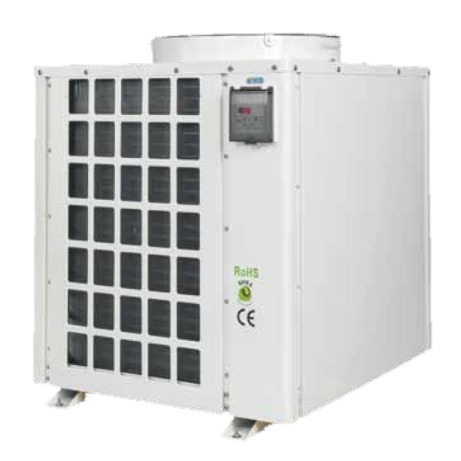

TECO TK-5K Aquarium Heat Pump
The TECO TK-series Heat Pumps are high-performance units designed for aquarium applications. These heat pumps are built with high-quality materials, even the smallest components.
2 hp, 240V-60Hz, 1 phase
Made in Italy
1 year warranty
- Description
- Specifications
- Documentation
- Additional information
- Test1
Description
TECO TK-5K Aquarium Heat Pump
The TECO TK-5K Aquarium Heat Pump are high-performance units designed for aquarium applications. These heat pumps are built with high-quality materials, even the smallest components.
High-Performance Refrigeration Technology
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels (sound pressure level at 1m/4m/10m are 51 dB / 38dB / 30dB) and achieve a high COP (coefficient of performance) contributing to significant energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24. Teco TK-5K heat pump is designed for heating and cooling water within 5℃ to 40℃.
Efficient Design
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.
Unique Features
TK Heat Pumps are also suitable suitable for many industrial applications.
Item number : TK-5K
Manufacturer : Teco
Horsepower: 2 HP
Minimum Flow Rate: 793 gallons per hour (50 lpm)
Maximum Flow Rate: 1321 gallons per hour (83 lpm)
Minimum set point: 41°F (5°C)
Maximum set point: 104°F (40°C)
Titanium heat exchanger
Set-point in °C
Ambient temperature range: 41 – 100 °F (5°C – 38°C)
Power: 230V-60Hz- 1ph; 6.7 A; 2030 Watts cooling and 1500 W heating
In/Out Water Connection: 1.5″ (56 mm) tube diameter
Cooling capacity: 5800 Watts (19790 Btu\h)
Heating capacity: 5900 watts (20132 Btu\h)
Compatible with salt water
Maximum Pressure: 29 psi (2 bar)
Gas/Refrigerant: R410A
Certification:
- CE
- RoHS Compliant
- Compressor thermally protected
- Compressor
- IPX4
Weight: 220 lbs. (100 kg)
Dimensions: 21.1″ x 27.2″ x 32.9″ H (816 mm x 690 mm x 835 mm H)
Additional information
| Weight | 79 kg |
|---|---|
| Dimensions | 66 × 72 × 84 cm |
| Maximum Water Pressure | 2 bar |
| Cooling Capacity | 5800 W |
| Flow Rate | 3000-5000 l/h |
| Heating Capacity | integrated 5900 W |
| Power Capacity | 2 HP |
| Power Supply | 208-230V / 1PH / 60Hz |
| Type of chillers | Chillers |
