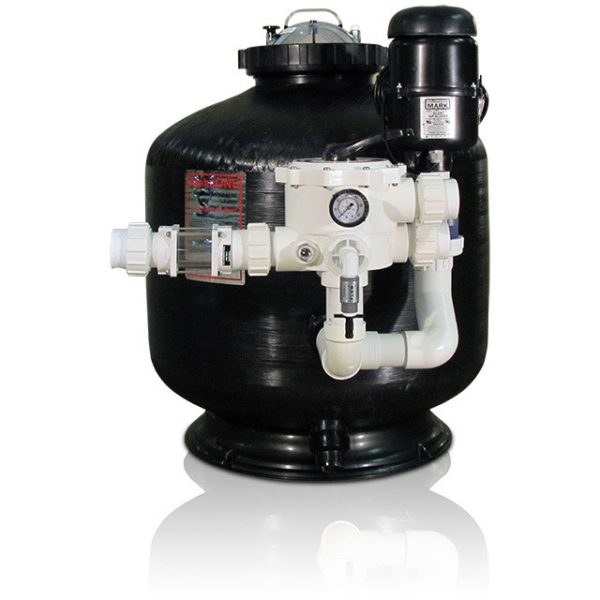

AquaBead 6.0 Filter
The 6.0cu.ft. AquaBead is the perfect filter for systems and ponds up to 17000 gallons, it will handle fish loads up to 300 lbs or a daily feed rate of 3 lbs. Flow rated at 120 gpm for bio-mechanical filtration. It’s has a footprint of only 30.4″ X 40″. The perfect filter for the majority larger ponds and small/medium aquaculture units.
Get Quote- Description
- Specifications
- Documentation
- Additional information
- Test1
Description
Aquabead bead filters by Grand Champion Technologies are the filter of choice for Aquabiotech’s larger research units. They have been selected for their quality construction, superior performance, the easy to use design as well as the advantageous Limited Lifetime Guarantee.
Our design and manufacturing teams did all the research to determine the highest quality, most user friendly bead filter at a reasonable cost.
Trust in our experience and get the best available filtration for your project, whether it’s an aquatics research unit or your private Koi Pond. Aquabead bead filters are sure to meet and exceed your expectations.

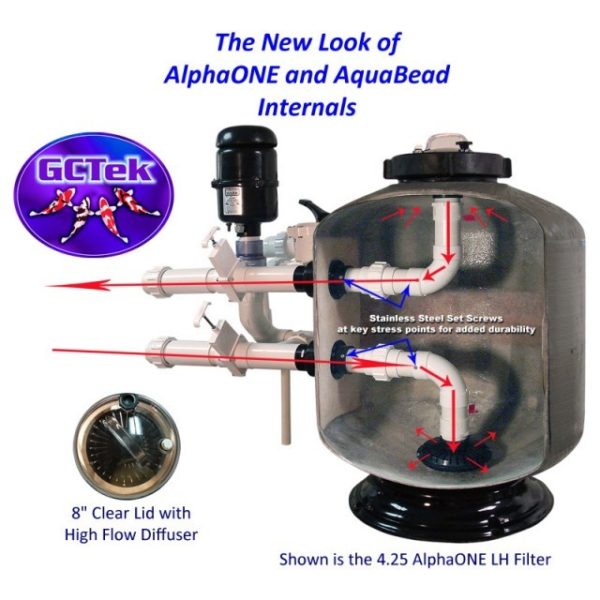

All of the AquaBead filters utilize the Omnifuser design technology that eliminates slotted PVC pipes in the filter. The Omnifusers allow the heavier solids to be easily purged from the bottom of the filter during backwash since they are sitting at the lowest point in the filter. AquaBead filters also feature the AquaBead Life Support System, known as “ALISS”, which keeps beneficial bacteria alive indefinitely during times of medical shutdowns, pumps failures, etc.
The 2″ Clear Union Spring Check Valve located right under the 2 HP blower provides maximum flow and has built-in unions
Maximum Flow rate (gpm/lpm): 120/545
Filter Volume (cubic feet): 6.0
Inlet/outlet size (inches): 2
Max. Pond/Tank Volume (Gal/Litres): 17000/77000 Ponds, 2250/10250 Aquaculture
Maximum fish load (lbs/kg): 300/136
Max daily feed (lbs/kg): 3/1.36
Additional information
| Weight | 37 kg |
|---|---|
| Dimensions | 76 × 76 × 102 cm |
