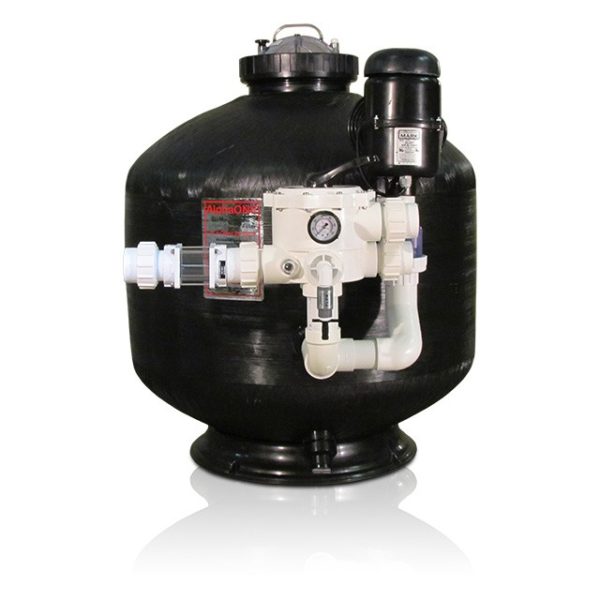

AquaBead 10.0 Filter
The 10.0cu.ft. AquaBead is the perfect filter for systems and ponds up to 25000 gallons, it will handle fish loads up to 500 lbs or a daily feed rate of 5 lbs. Flow rated at 180 gpm for bio-mechanical filtration it has a footprint of only 36 7/8″ X 42″. The perfect filter for the larger ponds and medium aquaculture units.
Get Quote- Description
- Specifications
- Documentation
- Additional information
- Test1
Description
Aquabead bead filters by Grand Champion Technologies are the filter of choice for Aquabiotech’s larger research units. They have been selected for their quality construction, superior performance, the easy to use design as well as the advantageous Limited Lifetime Guarantee.
Our design and manufacturing teams did all the research to determine the highest quality, most user friendly bead filter at a reasonable cost.
Trust in our experience and get the best available filtration for your project, whether it’s an aquatics research unit or your private Koi Pond. Aquabead bead filters are sure to meet and exceed your expectations.

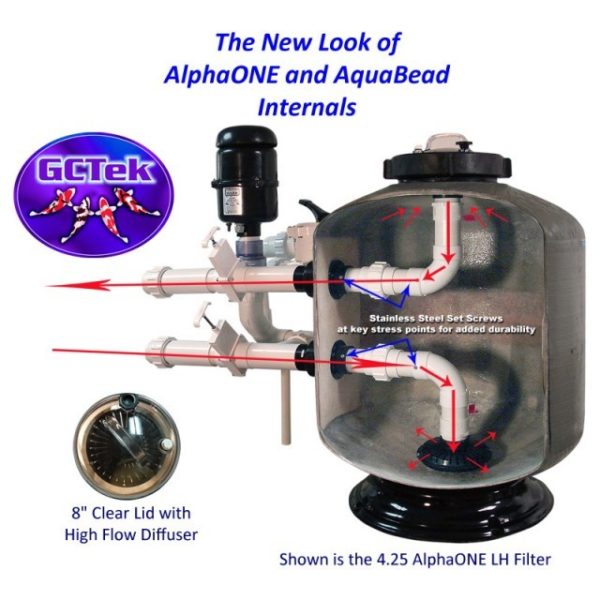

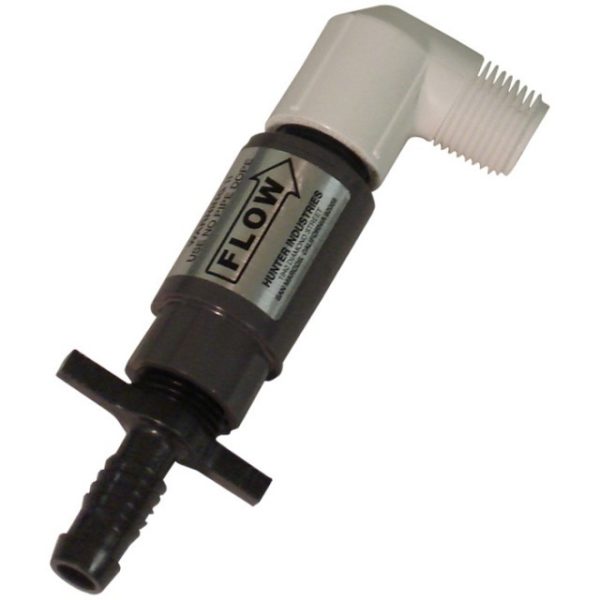

All of the AquaBead filters utilize the Omnifuser design technology that eliminates slotted PVC pipes in the filter. The Omnifusers allow the heavier solids to be easily purged from the bottom of the filter during backwash since they are sitting at the lowest point in the filter. AquaBead filters also feature the AquaBead Life Support System, known as “ALISS”, which keeps beneficial bacteria alive indefinitely during times of medical shutdowns, pumps failures, etc.

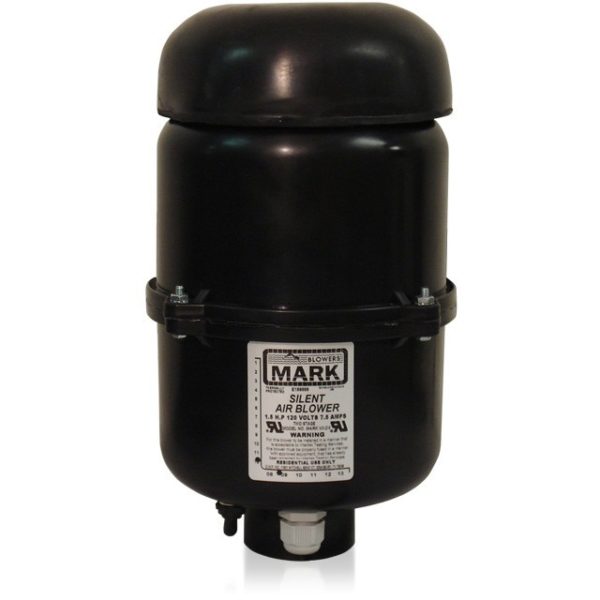

The 2″ Clear Union Spring Check Valve located right under the 2 HP blower provides maximum flow and has built-in unions
Maximum Flow rate (gpm/lpm): 180/818
Filter Volume (cubic feet): 10.0
Inlet/outlet size (inches): 2
Max. Pond/Tank Volume (Gal/Litres): 25000/113500 Ponds, 3300/12490 Aquaculture
Maximum fish load (lbs/kg): 500/227
Max daily feed (lbs/kg): 5/2.27
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 94 × 94 × 107 cm |
