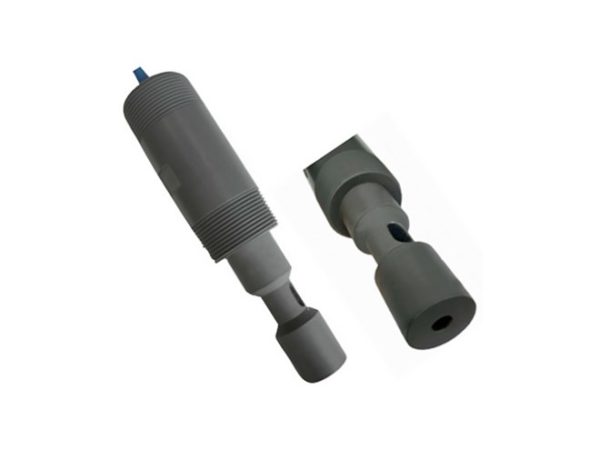

AquaMetrix Toroidal Salinity/Conductivity Probe
1,089.59$
Toroidal Salinity Probe by AquaMetrix. The AquaMetrix ES-5 series toroidal conductivity sensors are used in processes where conventional contacting sensors may become fouled or corroded. These probes are unique in the marketplace. They are loop-powered and provide direct 4-20 mA output.
- Description
- Specifications
- Documentation
- Additional information
- Test1
Description
Description
Toroidal Salinity Probe by AquaMetrix. The AquaMetrix ES-5 series toroidal conductivity sensors are used in processes where conventional contacting sensors may become fouled or corroded. These probes are unique in the marketplace. They are loop-powered and provide direct 4-20 mA output.
Each sensor comes standard with a Pt100 RTD temperature device, which provides automatic temperature compensation to 25°C (77°F).
The AquaMetrix ES-5 sensors are equipped with 1.5″ MNPT threads on both ends so that they can be mounted for in-flow applications or submersion mounted in tanks or open vessels.
Specifications
- Loop powered 4-20 mA output
- Max flow rate of 10 ft(3m)/s
- 10ft (3m) sensor cable
- Low maintenance: reduced cleaning requirements
- No electrode corrosion
- CPVC outer shell
- Operating temp: 14 to 140°F (-10 to 60°C)
- Measuring ranges:
- 0 to 10 mS/cm
- 0 to 100 mS/cm
- 0 to 1000 mS/cm
Documentation
Datasheet
Manual
Additional information
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 30 × 10 × 10 cm |
